Description
Empower your performances with the flexibility to personalize your setup and infuse your distinctive style into every show. This 2-channel battle mixer offers the freedom to utilize Serato DJ Pro and is a Hardware Unlock device for rekordbox, granting you access to performance features in both applications.

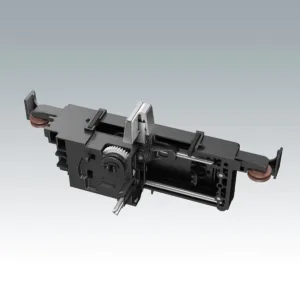

Magvel Fader Pro
We’ve enhanced the feeling of the Magvel Fader Pro and boosted the rigidity of the knob mounting shaft in the vertical direction by 30 percent so you can scratch with even more confidence.

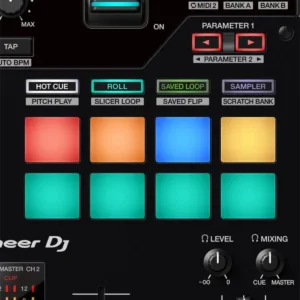

Large Performance Pads
The 8 large Performance Pads on each channel are easy to hit when you want to rapidly fire off Hot Cues and samples. And with independent pad modes, you can use 2 different features – one on each channel’s set of pads – at the same time.

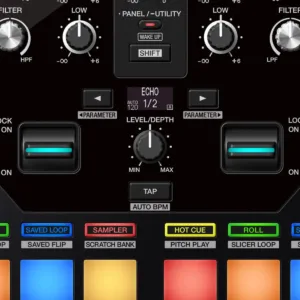

Large Effect Levers
Enhance your creativity with the DJM-S7’s large levers for applying effects. It offers 22 built-in Beat FX from the DJM-S11, Serato DJ Pro, and rekordbox software effects. Easily customize the 6 effects on the FX Select buttons, all viewable on the OLED display.

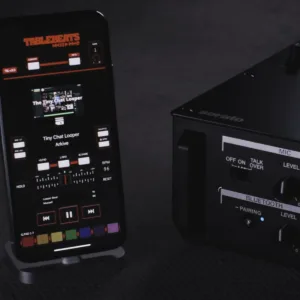

Bluetooth Input
Effortlessly integrate your phone with the DJM-S7 through Bluetooth for seamless sound incorporation into your set. Play loops, requests from the audience, or use it as a backup if your laptop encounters issues. You have the flexibility to route the sound through the master output or either of the channels.
Main Features
MIDI Control: Assignable
Compatible DJ Software: Unlocks Serato DJ Pro & Rekordbox
DVS Control: Unlocks Serato DVS & Rekordbox
Bluetooth Audio Input:
Version: Bluetooth standard version 5.0
Supported Codecs: SBC, AAC, Qualcomm® aptX™, Qualcomm® aptX™ Low Latency
Maximum Communication Distance: Approximately 10 m in unobstructed circumstances
Accessories:
DJM-S7
Power cord
USB cable
Warranty (for some regions)
Quick Start Guide
Precautions for Use
Serato DJ Pro Expansion Pack Voucher (Pitch ‘n Time DJ)
Specifications
Frequency Range: 20 – 20000 Hz
Width: 10.51 in
Height: 4.25 in
Depth: 15.65 in
Weight: 9.92 lb
Power Consumption: 24W
Power Supply: AC 100-240 V, 50 Hz / 60Hz
S/N Ratio USB:
110 dB (USB)
103 dB (LINE)
88 dB (PHONO)
80 dB (MIC)
103 dB (AUX)
Distortion:
0.003% (USB)
0.005% (LINE)
Master
Level Meter Size: 9 segment
Performance Control
EQ/ISO: 3 band
EQ/ISO Range: –∞ dB to +6 dB
Crossfader
Crossfader Type: MAGVEL FADER PRO
Mic
Mic Connection: XLR / 1/4-inch Combo Jack
Sound card
Connection: USB (Type-B)
Sample Rate: 24 bit
Frequency: 48 kHz

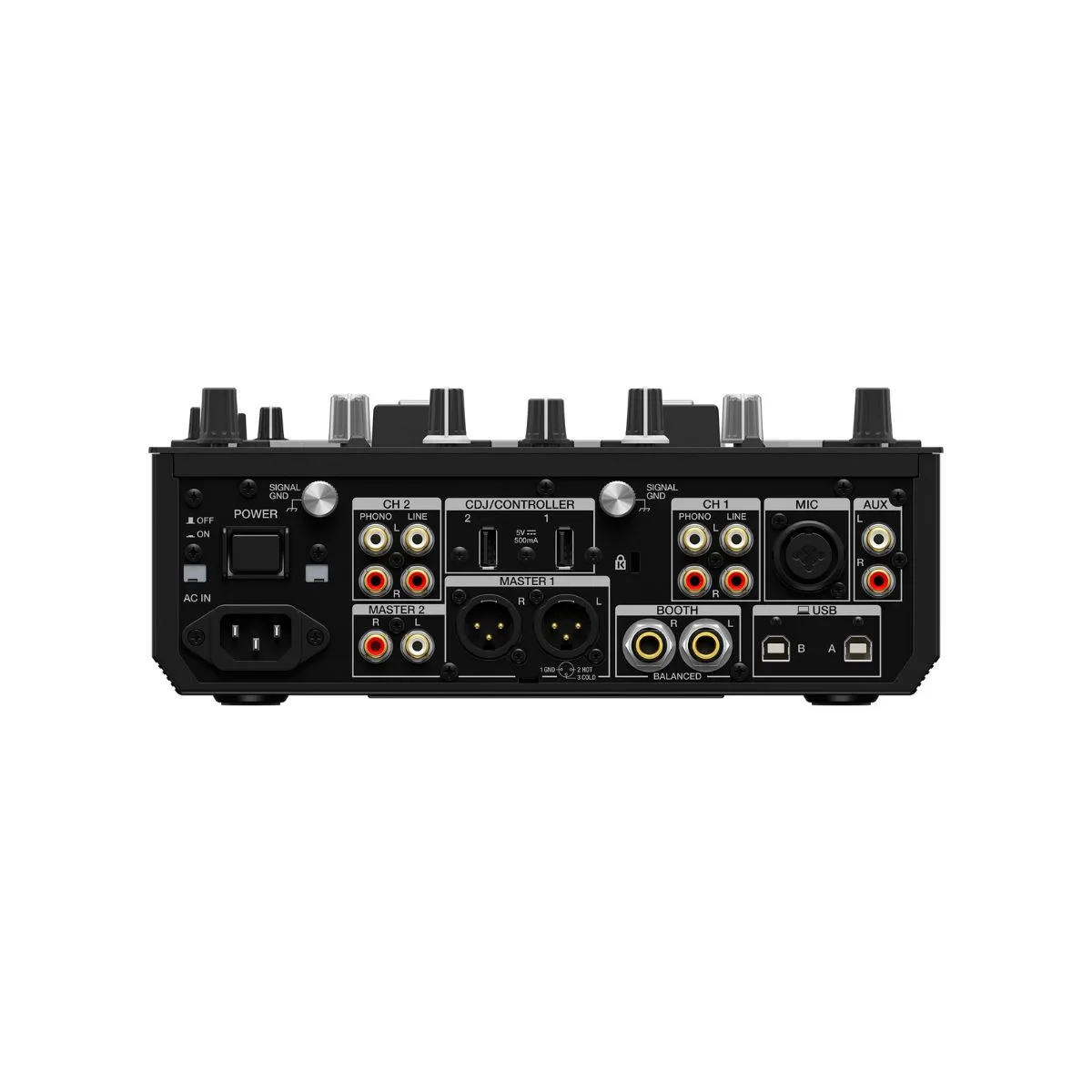

Terminals
Inputs:
2 LINE (RCA)
2 PHONO (RCA)
1 MIC (XLR & 1/4 inch TRS Jack)
1 AUX (RCA)
Outputs:
2 MASTER (XLR, RCA)
1 BOOTH (1/4 inch TRS Jack)
2 PHONES (1/4-inch stereo jack, 3.5-mm stereo mini-jack)
USB:
2 USB A ports
2 USB B ports
