Description

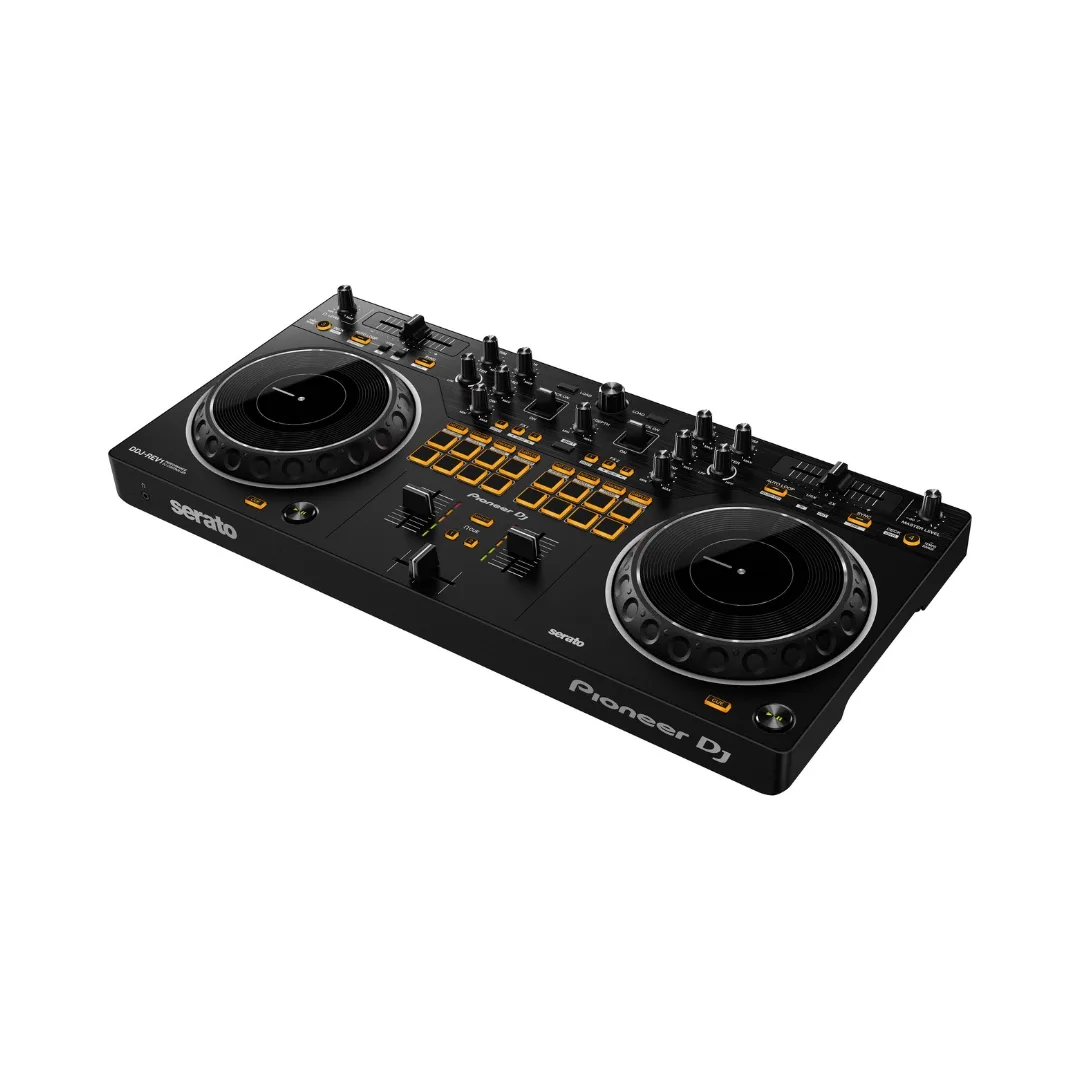

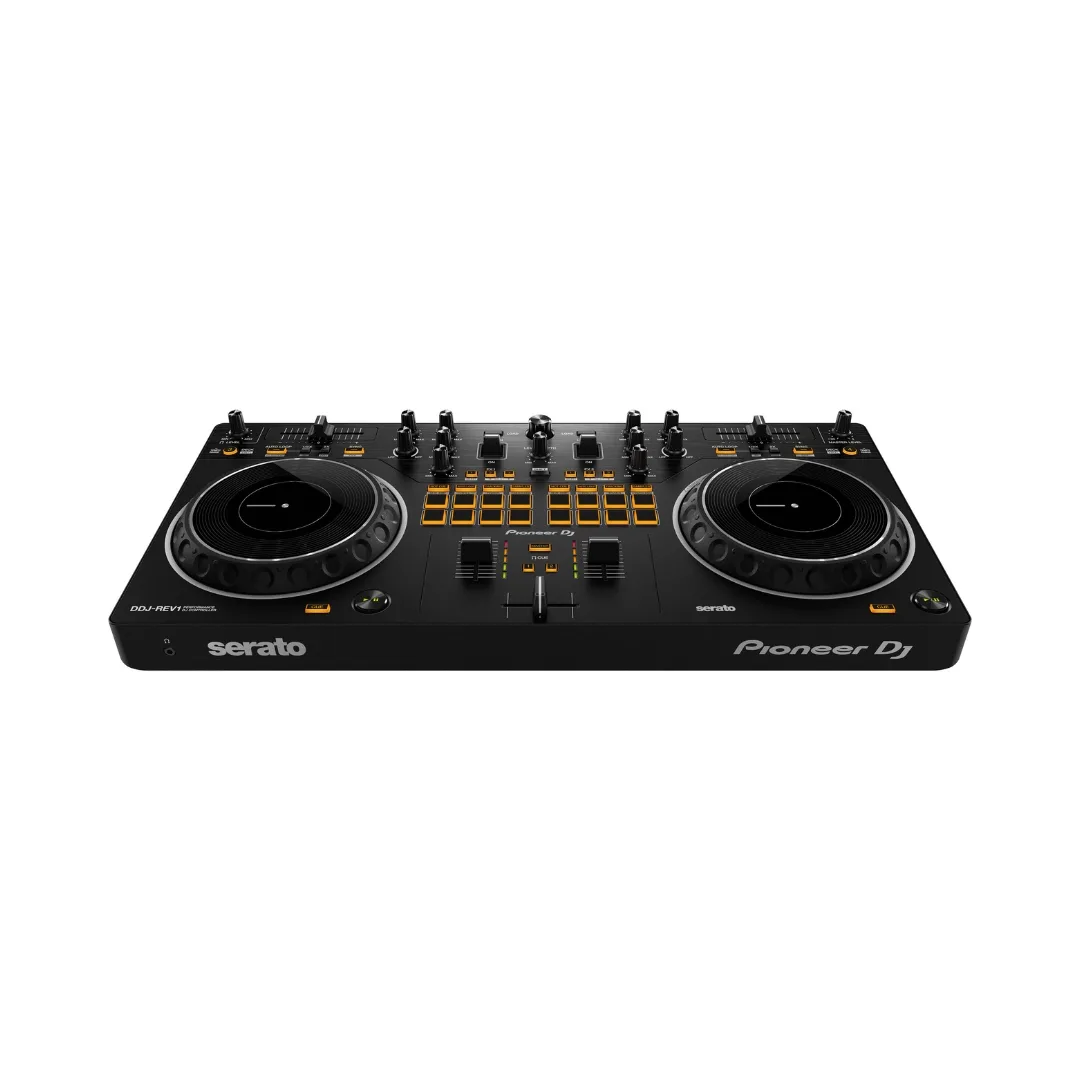

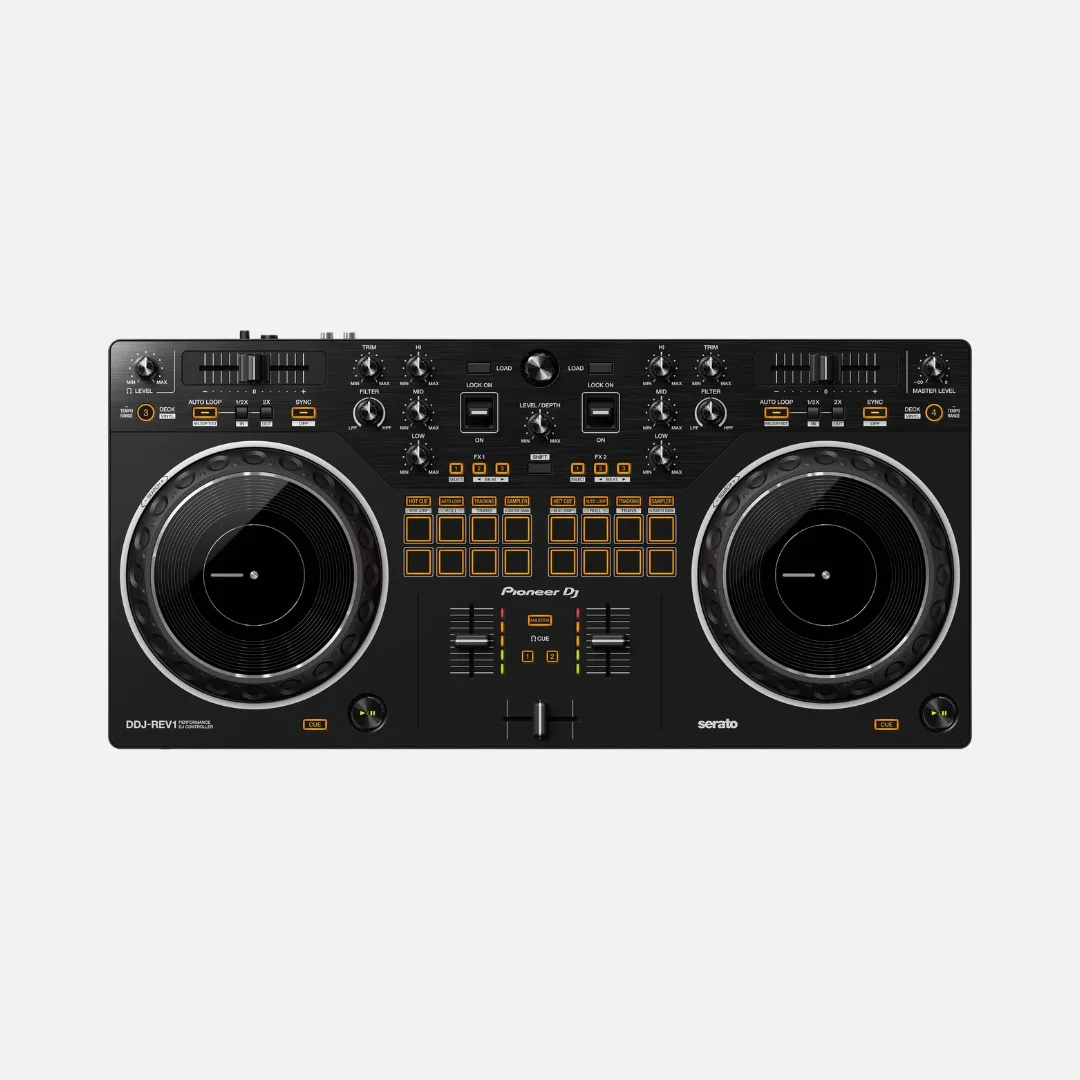

The DDJ-REV1 is a seamless companion for the complimentary Serato DJ Lite software. It showcases a fresh battle-style layout that’s user-friendly and ideal for performing at a professional level. This 2-channel DJ controller is designed to mirror the setup of a professional DJM-S mixer and PLX turntable, complete with tailored functionalities catering to open-format and scratch DJs.

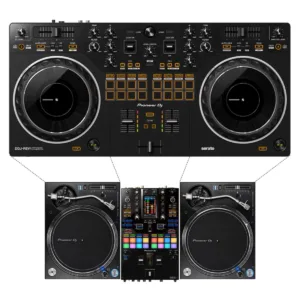

Brand-new battle-style layout
The DDJ-REV1 replicates the feel of a 2-turntable and DJM-S mixer setup, offering hands-on control favored by battle DJs. It features spacious 60mm tempo sliders and integrated Performance Pads for intuitive mixing, effects, and scratching.
Bigger jog wheels
The bigger the jog wheels, the better for scratching. The jogs on the DDJ-REV1 are the same size as the ones on the DDJ-SR2, a popular controller that’s higher up in our range.
Lever FX
Dynamically add texture to the music with Lever FX. Pull the levers down and hold them to apply effects from Serato DJ Lite in short bursts or push them up to lock on effects and free up your hands for scratching or track browsing.

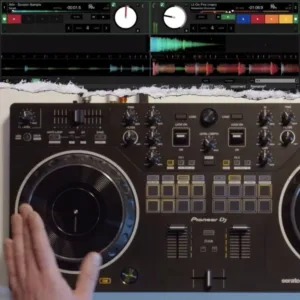

Scratch assistance feature
Tracking Scratch simplifies scratching by automatically returning to the cue point when you move the jog wheel forward or lift your hand, eliminating manual fader adjustments. Activate it by selecting Tracking Scratch Pad mode, choosing a Scratch Crossfader Cuts pattern, and moving the jog.
Stream with vocal integration
The DDJ-REV1 combines master audio with microphone input, enabling seamless vocal integration without needing additional equipment like a soundcard or mixer. All audio is routed to Serato DJ Lite, making it easy to stream your performance with both music and vocals.
Serato DJ Lite integration
Download Serato DJ Lite for free, connect the DDJ-REV1 via USB, and control software features with the controller’s tactile buttons, knobs, and jog wheels. Use Scratch Bank mode to instantly load scratch samples from 4 assigned banks.
Main Features
- Compatible DJ Software: Serato DJ Lite / Serato Dj Pro
- Accessories:
DDJ-REV1
USB cable
Warranty (for some regions)
Quick start guide
Precautions for use
Specifications
- Frequency Range: 20 – 20000 Hz
- Width: 526 mm
- Height: 59.2 mm
- Depth: 255.5 mm
- Weight: 2.1 kg
- Soundcard: 24 bit/48 kHz
- Signal-to-Noise Ratio: 103 dB
- Distortion: < 0.005 %
- Power Supply: USB Type B bus powered
- Power Consumption: 5V 500mA
Performance Control
- Channels: 2
- Deck Control: 4
- Trim knob: Yes
- Jog Wheel (Maximum Dimensions): 154 mm
- Filter: Yes
- Sampler: Yes
- Hot Cues: 4
- Pad Modes: Hot Cue / Auto Loop / Tracking Scratch / Sampler / Trans / Scratch Bank
- Manual Loop: Yes
- Autoloop: Yes

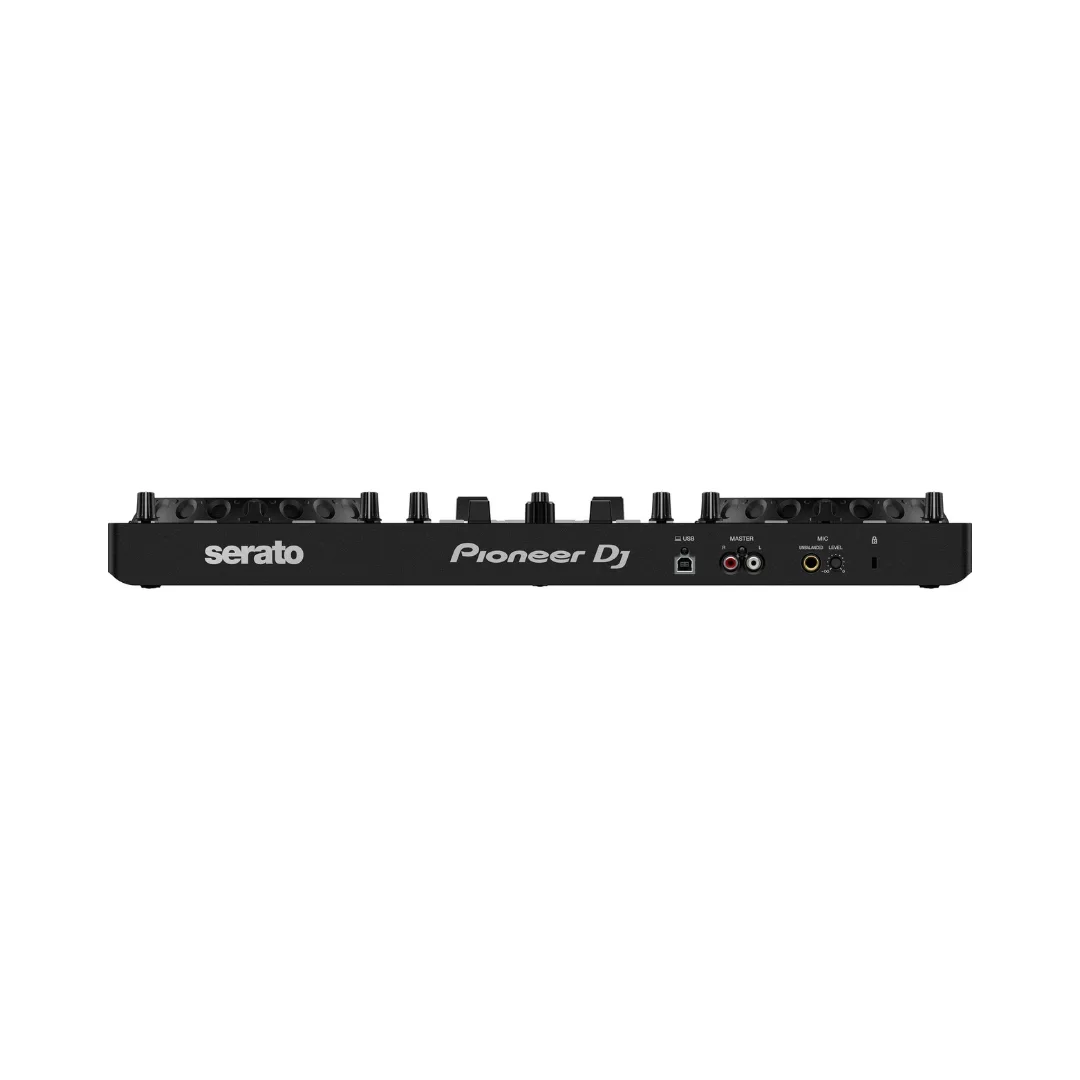

Terminals
- Inputs: 1 MIC (1/4 inch TS Jack)
- Outputs:
1 MASTER (RCA)
1 PHONES (3.5-mm stereo mini jack) - USB: 1 USB B port
Fader
- Channel Fader Start: Yes
- Crossfader Start: Yes
- Crossfader Curve Adjust: Yes
